ASU (WIRE-TO-BOARD, ANGLE TYPE) - Automotive / Wire to Board

Wire to Board / ASU (Wire-to-Board, Angle type)

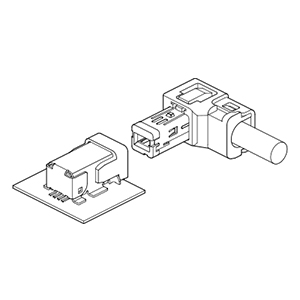

Wire to Board / ASU (Wire-to-Board, Angle type) - Schema

Product profile

Application	Automotive
Connector	Wire to Board
Technology	Industry
Pitch	0
Smt	no

Spécifications

Current rating	1A AC, DC
Temperature range	-40 to +105 Celsius degrees
Voltage rating	30V AC, DC
Pcb mounting direction	Side entry SMT
Transmission speed	up to 2 Gbps

Download specifications

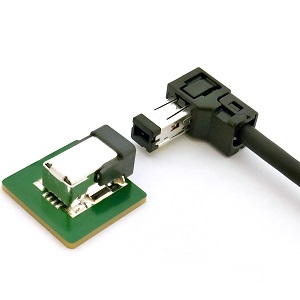

ASU is a compact, high-speed transmission connector ideal for in-vehicle equipment such as : - Electronic Toll Collection Systems (ETC), - Navigation systems and - Human Machine Interface (HMI). Designed for SMT termination.

Description filter

1 référence

To order sample, you must LOG IN

More information use contact form

ASU-4RASM-12T1-K1-TR(LF)(SN) *
