FVR - FFC/FPC / Wire to Board / For FFC/FPC

Product profile

Application	FFC/FPC
Connector	Wire to Board
Familytype	For FFC/FPC
Technology	ZIF
Pitch	0.2 mm
Smt	no

Spécifications

Current rating	0.2A AC, DC
Insulation resistance	50 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC

Download specifications

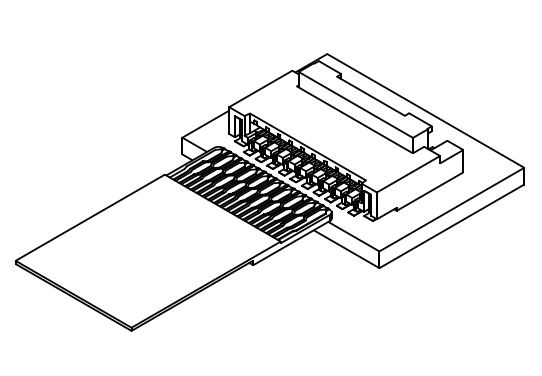

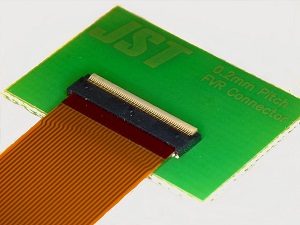

This is low profile a d space saving type connector for FPC, with 0.2mm pitch, 0.95mm height and 3.0mm depth. Back flip type of double sided contact improves the freedom for routing of FPC. Smooth locking connection by supplying with cover opened / With reinforcement strong structure / Environmentally friendly halogen-free product

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
