GIT - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Technology	Industry
Pitch	0
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +85 Celsius degrees

Download specifications

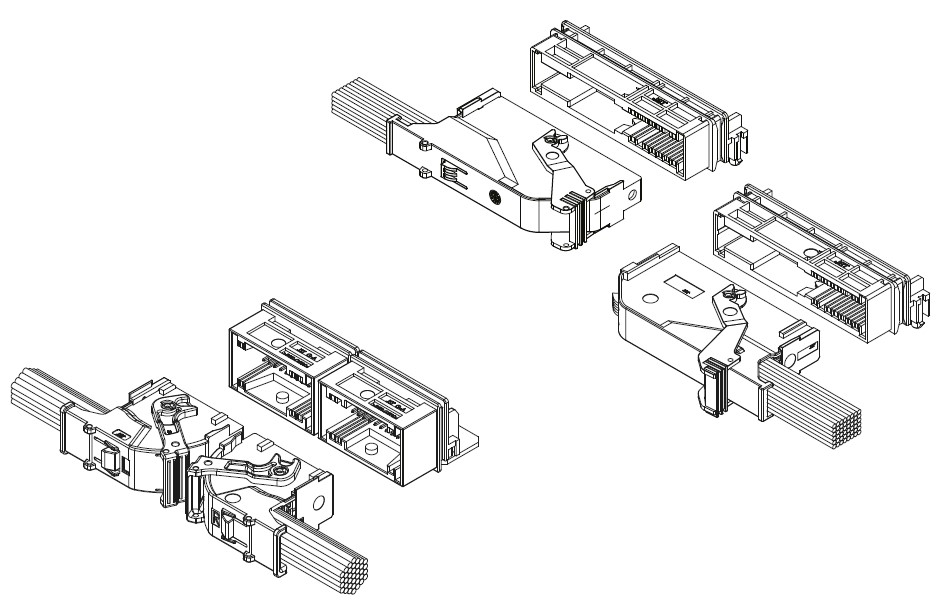

Realized low insertion force with lever mechanism. This connector have the variousable to color/key/pin arrange corresponding to needs, hence the connector type suitable can be selected.
