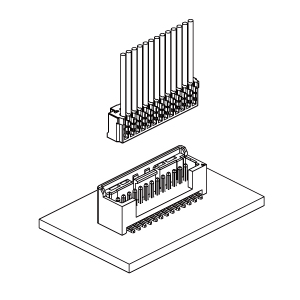

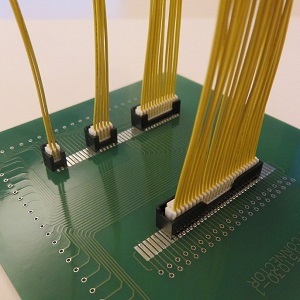

GX/GXW - Connectors / Wire to Board

Product profile

Application	Connectors
Connector	Wire to Board
Technology	Insulation displacement
Pitch	1.25 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC
Compliant with rohs

Download specifications

Ã»Narrow pitch (1.25 mm) compatible with AWG # 26 (UL10272/11079)
ã»Surface mount type that promotes automation without suction tape
ã»Low insertion force type is adopted focusing on workability.
ã»This connector has the lever type friction lock toprevent incomplete insertion by click feeling when inserting.

Description filter

4 références

To order sample, you must LOG IN

More information use contact form
