PSI HIGH CURRENT D TYPE - Connectors / Wire to Board

Wire to Board / PSI High Current D Type - Schema

Product profile

Application	Connectors
Connector	Wire to Board
Technology	Crimp
Pitch	8.0 mm
Smt	no

Spécifications

Current rating	15A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	600V AC, DC

Download specifications

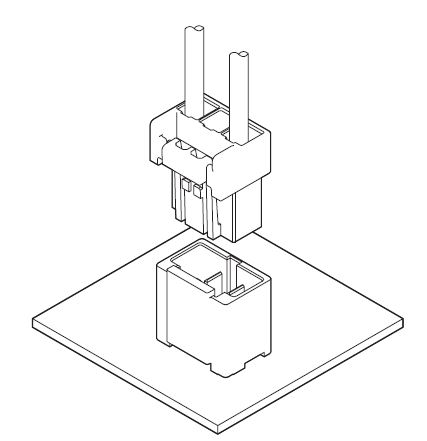

This is a board-to-wire connector. Low insertion force type contact is adopted and it provides excellent operability. This connector has the secure locking device that has the mechanism for preventing the inverse insertion.The connector suitable for the large electric current was realized by using highly-conducting material. By adopting key shape and multi colors of housing, prevention function of mis-mating with conventional PSI connector is considered.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
