TCUD - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Technology	Sealed
Pitch	2.55 mm
Smt	no

Spécifications

Current rating	7A, DC / 5A, DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +125 Celsius degrees

Download specifications

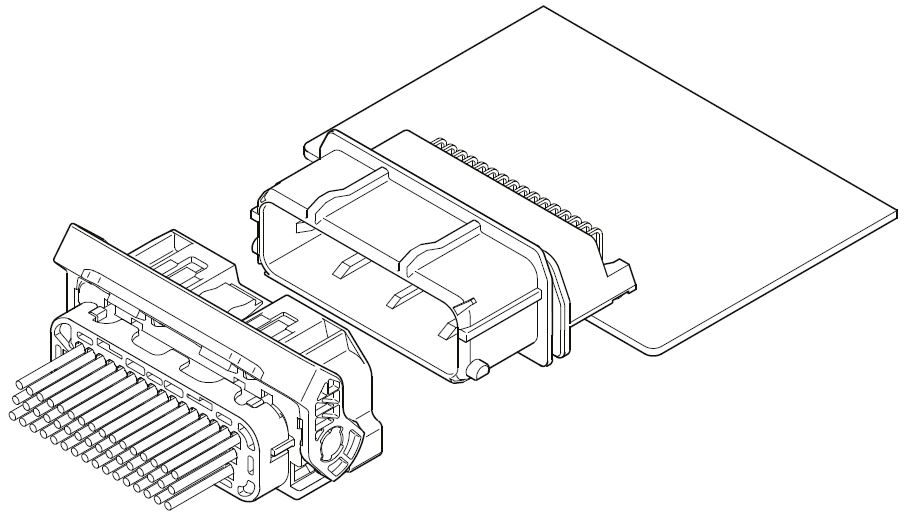

This connector is 48 circuits sealed & lever type connector. Female connector is ZRO & TCUD male which is lower height than ZRO female one. Lower profile: height from PCB is lower than ZRO. Improvement of Operability: lever adopted to decrease theconnector mating force. The fixing part to PCB is lightly press*fitted boss configuration in consideration of the workability when assembling. Sealed: mat sealed to improve the workability of wire seal part. Durability: heat resistant spec.
