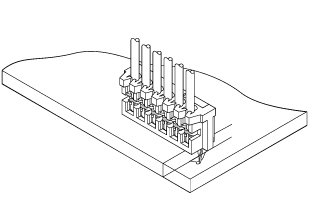

ZA - IDC / Wire to Board

Product profile

Application	IDC
Connector	Wire to Board
Technology	Insulation displacement
Pitch	1.5 mm
Smt	no

Spécifications

Applicable pc board thickness	0.6 to 1.2 mm
Current rating	0.7A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC
Compliant with rohs

Download specifications

Twin-slot ID section
Insulation barrel construction The insulation barrel located between the twin slots firmly grips the wire and protects it from movements due to the heat of soldering or due to handling right after soldering.

Description filter

1 référence

To order sample, you must LOG IN

More information use contact form

04ZA-8M(LF)(SN) *
