ZOM - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	1.5 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to +85 Celsius degrees
Voltage rating	100V AC, DC

Download specifications

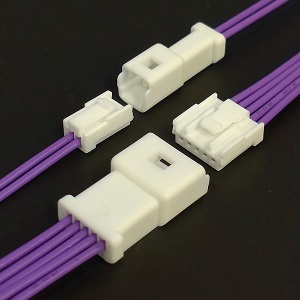

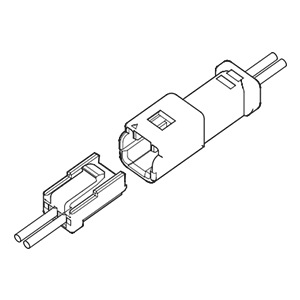

This is a small-sized, wire-to-wire, single row connector at 1.5mm pitch. It's not only compact for applications with limited space, but also provides a clear mating and locking sensation upon connecting the plug and receptacle. In addition, the ZOM series comes with low-insertion force contazcts which can improve operability when mating and unmating the connector.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
