ZR - IDC / Wire to Board

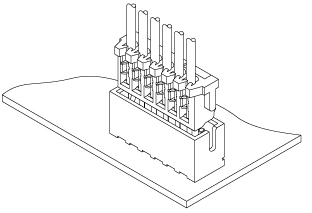

Wire to Board / ZR - Schema

Product profile

ApplicationIDC
ConnectorWire to Board
TechnologyInsulation displacement
Pitch1.5 mm
Smtno

Spécifications

Current rating0.7A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25 to + 85 Celsius degrees
Voltage rating50V AC, DC
Compliant with rohs
Download specifications



Twin U-slot ID section
Fully shrouded header
The same shrouded header can be used for the ZH crimp style connector.

Description filter


52 références

To order sample, you must LOG IN
More information use contact form
